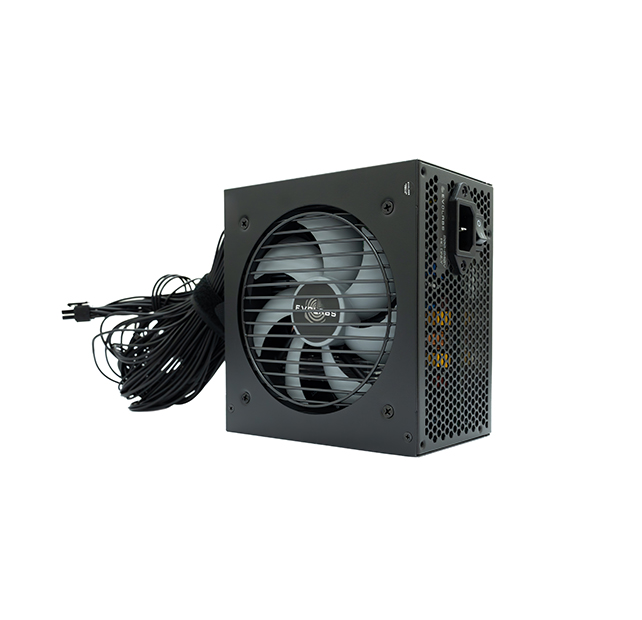

750W power supply with official 80 PLUS Silver certification and a powerful +12V rail delivering 62A. Featuring advanced protections, premium-quality cables, and a modern design, it delivers the efficiency and power required for most high-end system builds.
EVOLABS EVO80BS-750W: 80 PLUS Silver Certified Power for Demanding Systems Part of the Supreme Series, the EVO80BS-750W delivers 750W of continuous real power with an official 80 PLUS Silver certification, ensuring superior energy efficiency that reduces power consumption and internal temperatures. Engineered for long hours of high-performance use.
Powerful +12V Rail for High-End Builds Featuring a robust single +12V rail delivering up to 62A, this PSU provides the necessary power to handle most high-end setups, including powerful GPUs, multi-core CPUs, and energy-hungry components without breaking a sweat.
Advanced Protection for Maximum Safety To ensure stable and safe operation, it includes built-in protection features such as OVP (Over Voltage Protection), UVP (Under Voltage Protection), SCP (Short Circuit Protection), and OPP (Over Power Protection), shielding your PC against electrical damage.
Smart and Silent Cooling The 120mm temperature-controlled fan automatically adjusts its speed based on system load, providing quiet and efficient cooling for the internal components at all times.

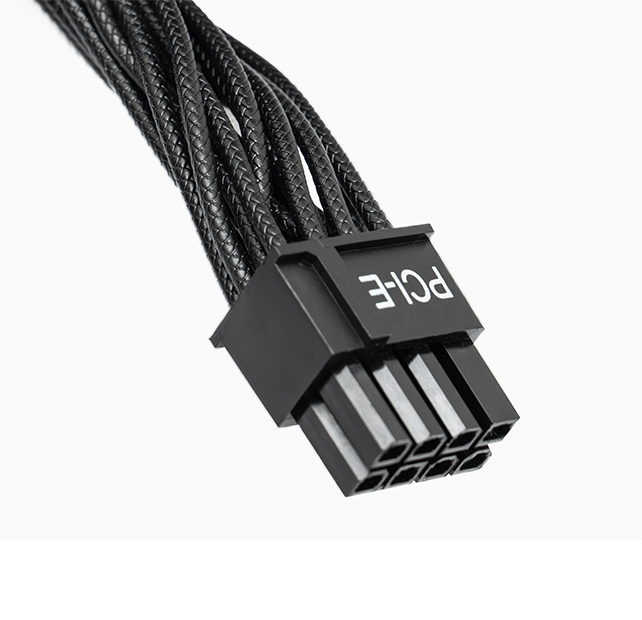

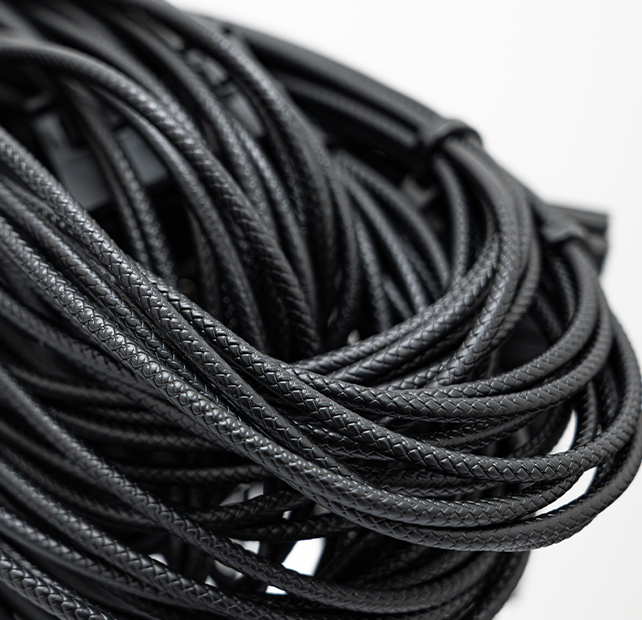

Optimized Cabling and Professional Aesthetics Equipped with black connectors and flexible high quality textured cables, it simplifies cable management, improves airflow, and adds a clean, professional look to your build.
Rugged and Modern Design Built with a solid black casing and embossed logos, the EVO80BS-750W combines durability with a distinctive and modern aesthetic that fits any enthusiast or professional setup.
PRODUCT: EVO80BS-750W
TECHNICAL DATA
MODEL | EVO80BS-750W | ||||||
---|---|---|---|---|---|---|---|
AC INPUT | 200-240VAC 10-5A 63-47Hz | ||||||
DC OUTPUT | +12V | +3.3V | +5V | -12V | +5VSB | ||
62A | 18A | 18A | 0.3A | 2.5A | |||
TOTAL POWER | 744W | 100W | 3.6W | 12.5W | |||
750W |
TECHNICAL SPECIFICATIONS
AC Input Voltage: 200-240VAC
ATX 20+4P Cable Length: 570 mm (from housing)
