PC CASES

BOLT
EVO-100A

A versatile mid-tower case with a tempered glass side panel, ARGB front accent, and optimized airflow. Supports ATX, Micro-ATX, and ITX motherboards, with space for up to 360mm liquid cooling. Built for clean setups and bold visuals.

EVOLABS BOLT EVO-100A: Form Meets Function for Performance Builds BOLT is a mid-tower chassis engineered for builders who demand both performance and aesthetic precision. With support for ATX, Micro-ATX, and ITX motherboards, it offers the flexibility to suit a wide range of setups—from compact gaming rigs to high-performance workstations.

Tempered Glass and ARGB Front Strip

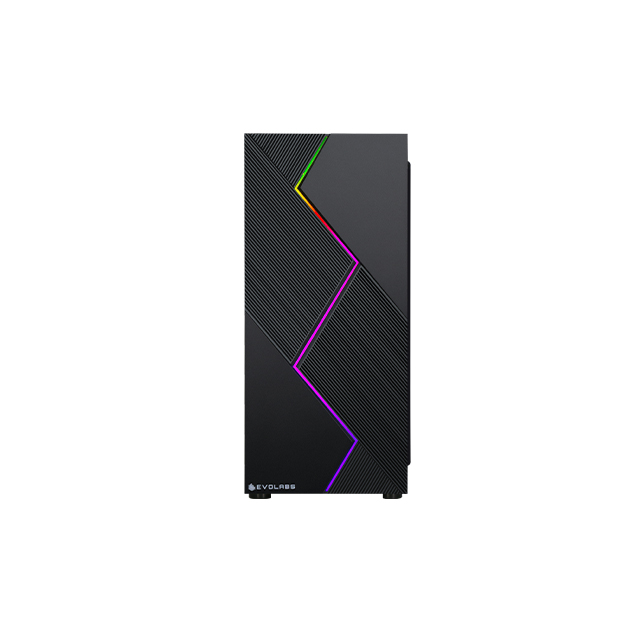

A full-size tempered glass side panel showcases your build’s internals with clarity and style. The minimalist front panel is accented with a dynamic ARGB strip, adding a customizable glow that enhances your setup's visual identity.

Optimized Cooling Support
Designed for efficient thermal performance, BOLT supports up to six fans and front-mounted liquid cooling radiators up to 360mm. A pre-installed 120mm RGB fan ensures immediate airflow and a splash of color right out of the box.

Built for Clean Builds
25mm of cable routing space behind the motherboard tray allows for neat cable management, while the bottom dust filter keeps your PSU clean and running smoothly over time.

Component Compatibility With support for graphics cards up to 330mm and CPU coolers up to 162mm tall, BOLT gives you the room you need to install today's high-performance components without compromise.

Whether you are building your first gaming PC or your next upgrade, the BOLT combines airflow, aesthetics, and smart layout into a refined, builder-friendly mid-tower.

PRODUCT: EVOLABS BOLT


PART NUMBER: EVO-100A

EAN: 7798436900041


FEATURES

Front Panel: ABS + ARGB Stripe


Top Cover: Magnetic dust filter

Side Panel: Tempered glass

Chassis: SPCC 0.45T

Motherboard Type: ATX / M-ATX / ITX

Front Ports: 1x USB 3.0 + 2x USB 2.0 + HD Audio

PSU Port: Bottom / ATX / Chamber outside (Max. 150 mm)

Reserved Fan Ports:
Front: 3x 120 mm
Support 120 / 240 / 360 liquid cooler (HDD Tray move back + I/O cables from top for 360mm install)
Rear: 1x 120 mm
Support 120 liquid cooler
Top: 2x 120 mm
Support 240 liquid cooler (when memory height won't higher than 30mm)

Fans Included: 1x 120 mm

Fan Light: Fixed RGB

Fan RPM: 1200 RPM

Fan Noise: 22dBA (Max.)


Fan Connector: Molex 4 pin

Drive Bays: 2x 3.5'' HDD + 3x 2.5'' SSD

PCI Slots: 7x

Chassis Size (L x W x H): 330 x 180 x 420 mm

Case Size (L x W x H): 390 x 204 x 470 mm

Carton Case Size (L x W x H): 482 x 242 x 430 mm

Max. VGA Card: 330 mm (front / rear won't installed fan / liquid)

Max. CPU Cooler: 162 mm

Cable Management: 25 mm

Weight: 3.8 kg / 4.5 kg
