PC Cases

LUMA DARK
EVO-315MB

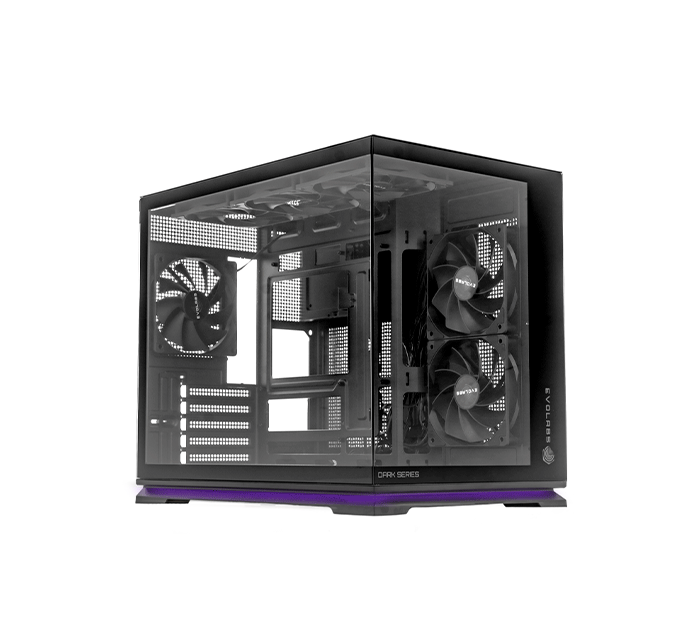

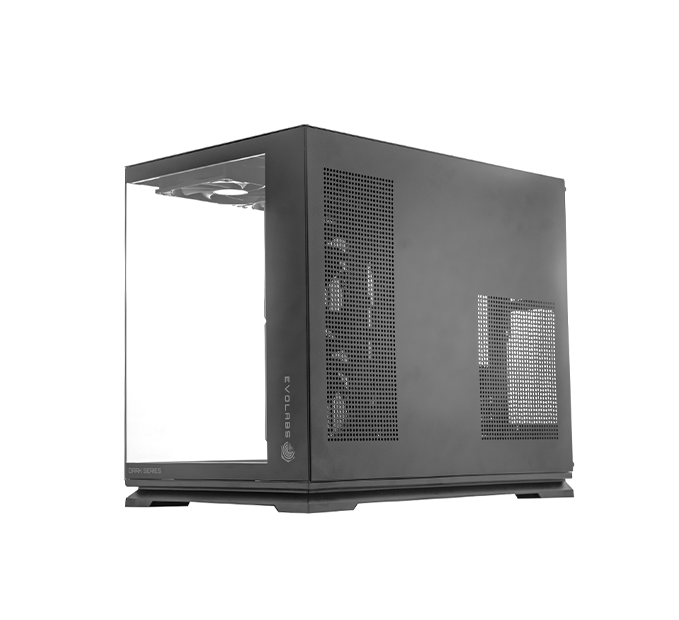

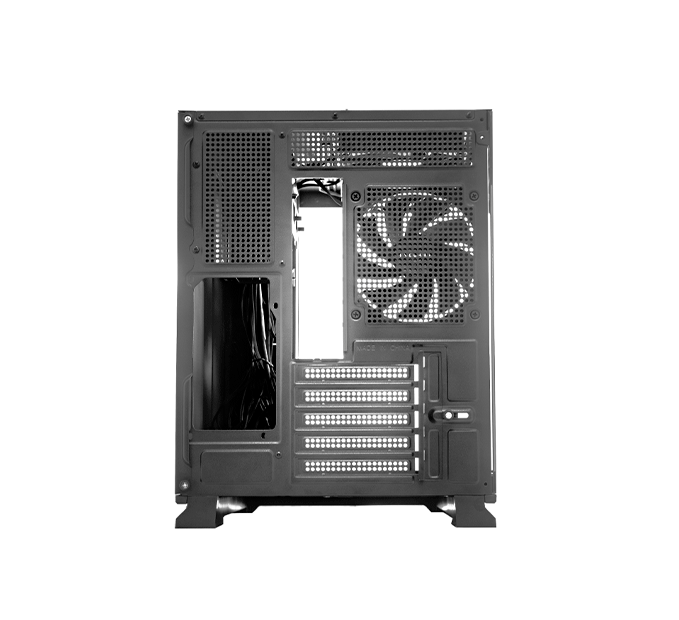

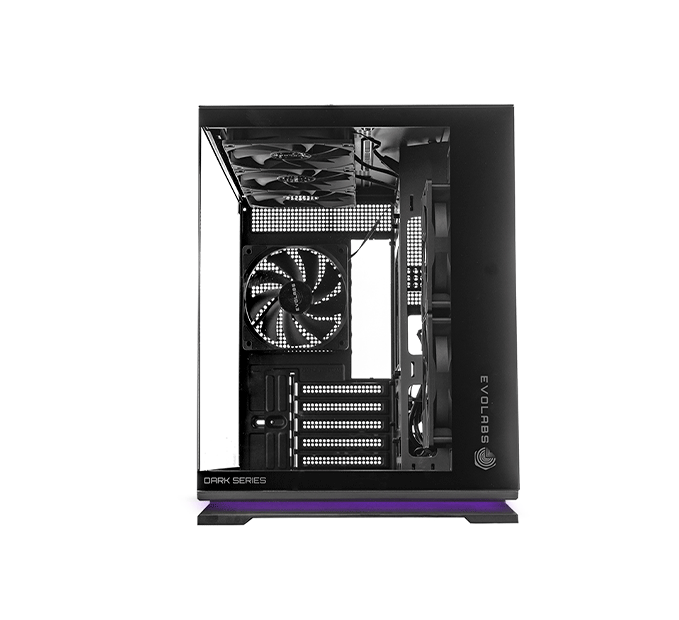

A dual-chamber M-ATX chassis featuring a fully dark, minimalist, and sophisticated aesthetic, designed for setups that prioritize elegance, visual presence, and high-performance airflow without relying on excessive ARGB lighting. Its combination of panoramic tempered glass, clean internal architecture, and optimized cooling creates a premium appearance that feels both refined and aggressive at the same time.

EVOLABS LUMA DARK: Absolute Minimalism with Premium Identity

LUMA DARK represents the most refined and understated version of the LUMA series, maintaining the signature panoramic premium design while replacing traditional ARGB-focused aesthetics with a fully dark and minimalist identity. Designed for users who prefer modern, clean, and sophisticated setups, the LUMA DARK combines panoramic tempered glass panels with an all-black cooling configuration, creating a powerful visual presence without relying on excessive RGB effects. Its dual-chamber structure fully conceals the power supply and main cabling area, resulting in a much cleaner and more professional internal presentation. Compatible with M-ATX and ITX motherboards — including Back-Connect designs — the chassis is built for modern premium systems where internal organization and aesthetics are just as important as performance.

Dark Panoramic Premium Design

The 4mm tempered glass front and side panels create an ultra-clean and elegant showcase view of the internal hardware, emphasizing depth, contrast, and minimalist styling through its dark visual presentation. The surrounding bottom lighting remains subtle and discreet, complementing the DARK identity of the chassis without disrupting its clean and refined aesthetic. Every detail of the LUMA DARK was carefully developed to deliver a premium, modern, and aggressive appearance, making it the ideal choice for high-end minimalist setups.

High-Performance Airflow with Full Black Cooling Configuration

Beyond its visual design, the LUMA DARK was engineered to provide excellent thermal performance even under demanding workloads. It comes equipped with 6 pre-installed 120mm PWM fans — including 2 reverse-blade fans and 4 standard airflow fans — all featuring a fully black non-ARGB design for a clean, uniform, and professional appearance while delivering highly efficient airflow performance. The chassis supports multiple cooling and liquid cooling configurations, including radiators up to 360mm on the top panel. In addition, the ventilated right-side panel improves fresh air intake toward critical hardware zones, enhancing overall thermal efficiency.

Advanced Compatibility and Clean Internal Layout

Despite its compact footprint, the LUMA DARK offers extensive compatibility for next-generation hardware. It supports graphics cards up to 420mm in length and CPU air coolers up to 165mm in height, making it fully prepared for demanding gaming and workstation systems. Its generous 96mm cable management clearance enables exceptionally clean and organized builds, especially when paired with Back-Connect motherboards.

Premium Experience with Integrated PWM Control

The chassis includes an integrated PWM fan hub/controller with support for multiple cooling devices, improving thermal management while maintaining a cleaner internal layout. Modern front I/O connectivity includes USB 3.0, USB 2.0, and HD Audio support for a complete premium user experience. The result is a chassis that combines minimalism, airflow performance, and premium visual presence under a truly DARK identity.

PRODUCT: EVOLABS LUMA DARK


PART NUMBER: EVO-315MB

EAN: 7798436900317


FEATURES

Front Panel: 4mm Tempered glass


Top Cover: Magnetic dust filter

Bottom Panel: 3-Side surrounding hidden ARGB LED strip + PVC dust filter

Left Side Panel: 4mm Tempered glass

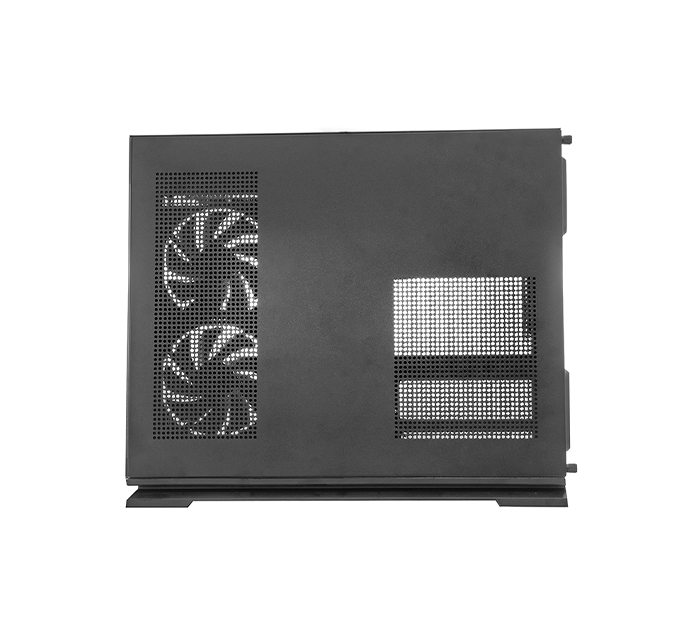

Right Side Panel: Metal with ventilation holes

Chassis: SPCC 0.5 + 0.6 + 0.7mm

Motherboard Type: M-ATX / ITX (supports Back Connect motherboards)

Front Ports: 1x USB 3.0 + 1x USB 2.0 + HD Audio

PSU Port: Side ATX chamber (190 mm)

Reserved Fan Ports:
Top: 3x 120 mm or 2x 140 mm
Support 120 / 240 / 280 / 360 liquid cooler
Front: N/A
Right Side: 2x 120 mm
Support 120 / 240 liquid cooler
Rear: 1x 120 mm
Support 120 liquid cooler
Bottom: 3x 120 mm

Fans included: 6x 120 mm (2x Reverse Fan + 4x Normal Fan)

Fan light: None (Dark Design)

Fan RPM: 600RPM MIN. / 1600RPM MAX.

Fan Airflow: 69CFM (MAX.)

Fan Noise: 31.4 dBA (MAX.)

Fan Connector: 4 pin PWM

Fan HUB Controller: Included


Fan PWM Connectors: 8

Fan Connectors: 4 pin

Controller Power: PWM / SATA Connector

Drive Bays: 3.5" HDD x2 + 2.5" SSD x1 (Shared with 3.5" bay)

PCI Slots: x 5

Chassis Size (L x W x H): 428 x 280 x 340 mm

Case Size (L x W x H): 442 x 280 x 369 mm

Carton Box Size (L x W x H): 415 x 337 x 494 mm

Max. VGA Card: 420 mm

Max. CPU Cooler: 165 mm

Cable Management: 96 mm

Weight: 5.2 kg / 6.4 kg
