PC CASES

EVOLABS SINERGY
EVO-400AB

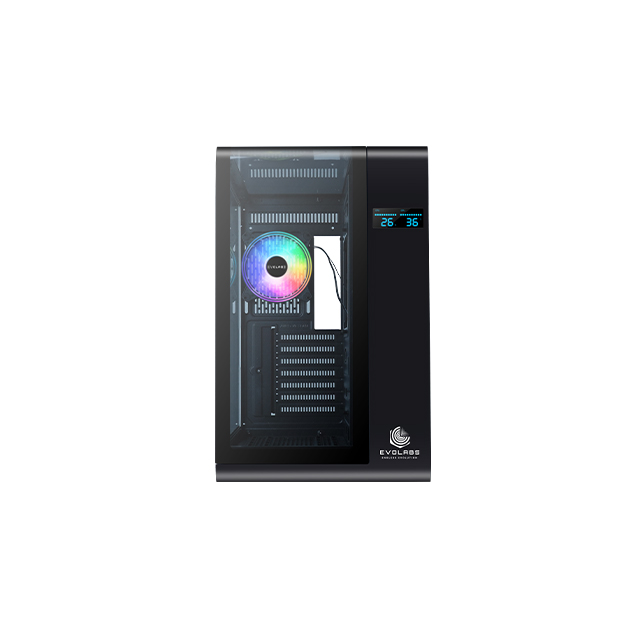

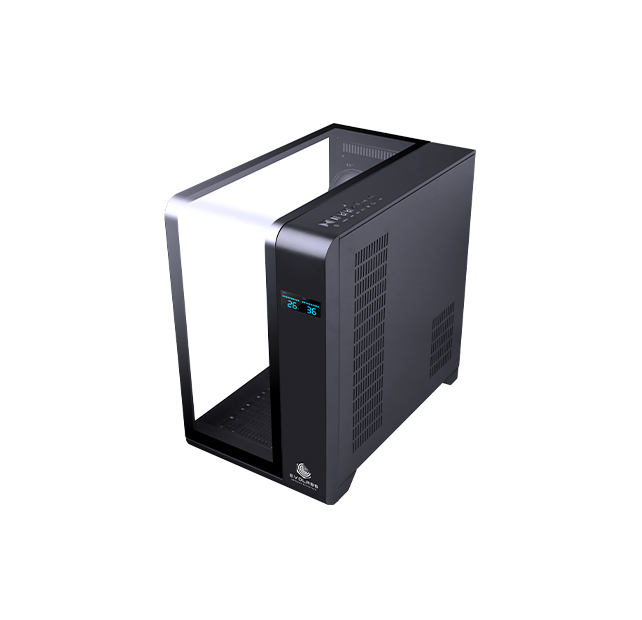

Premium high-end chassis with a unique and futuristic aesthetic. It has curved glass top-front panel that delivers a stunning visual experience, while its airflow-focused design ensures excellent performance. An integrated LCD panel provides real-time CPU and GPU temperature monitoring, making it ideal for advanced and high-performance builds.

EVOLABS SINERGY EVO-400AB: Innovation, Elegance and Monitoring Precision
SYNERGY is a high-end premium case designed for users seeking cutting-edge aesthetics and advanced functionality. Featuring a continuous curved tempered glass structure spanning the front and top (plus side tempered glass) it provides an ultra-panoramic view of internal components—delivering a visual impact that stands out in any setup. Compatible with ATX, M-ATX, and ITX motherboards, it offers full flexibility for complex configurations.

Curved Tempered Glass Design with a Visual Edge
With its reinforced frame and sleek curved glass layout, the Synergy offers unparalleled visibility and style. An integrated bottom dust filter and a removable tray simplify cleaning and system maintenance.

Front LCD Display for Real-Time Monitoring
Taking functionality to the next level, SYNERGY includes a front-facing LCD screen that displays real-time CPU and GPU temperatures via dedicated software. This feature ensures precise thermal awareness and system control for performance enthusiasts.

Optimized Cooling and ARGB Customization
The chassis supports up to 7 fans and liquid cooling radiators up to 360mm. It includes 4 pre-installed 120mm premium multilight ARGB fans and an integrated ARGB controller, allowing lighting to be adjusted via motherboard sync software (1) or a dedicated front LED button for full customization.

Advanced Internal Layout for High-End Hardware
With an exceptional 55mm cable management space, SINERGY ensures clean and spacious builds. It supports GPUs up to 410mm and CPU coolers up to 157mm, making it an excellent option for premium configurations.

(1) Compatible with Asus® Aura Sync, MSI® Mystic Light, Gigabyte® RGB Fusion, and ASRock® Polychrome Sync. To control ARGB lighting via software, the motherboard must support this feature and include at least one ARGB header. Refer to your motherboard’s manual for more information.

PRODUCT: EVOLABS SINERGY


PART NUMBER: EVO-400AB

EAN: 7798436900119


FEATURES

Front Panel: Tempered glass + right side with LCD screen


Top Cover: Tempered glass

Side Panel: Tempered glass

Chassis: SPCC 0.7T

Motherboard Type: ATX / M-ATX / ITX (Support M/B Back Plaguin)

Front Ports: 1x USB 3.0 + 2x USB 2.0 + HD Audio

PSU Port: Side ATX chamber (140 / 160 / 200 mm)

LCD Screen Size: 64.3 x 24.1 mm

LCD Connection: USB 2.0 header - software controlled

LCD Information: CPU temp. / CPU usage / GPU temp. / GPU usage (Customizable by User)

Reserved Fan Ports: Right:
3x 120 mm
Support 120 / 240 / 360 liquid cooler
Rear: 1x 120 mm
Support 120 liquid cooler
Bottom: 3x 120 mm

Fans Included: 4x 120mm

Fan Light: ARGB center + outside rings

Fan RPM: 1200 RPM

Fan Noise: 22dBA (Max.)

Fan Connector: 3 pins

Fan ARGB Controller: Included


Fan / ARGB Connectors Count: 4

Fan Connectors: 3 pin

Fan ARGB Connectors: 3 pin ARGB

ARGB Control: Frontal LED button or motherboard sync (ARGB header)

Controller Power: SATA Connector

Drive Bays: 2x 3.5'' HDD + 3x 2.5'' SSD

PCI Slots: 7x

Chassis Size (L x W x H): 412 x 280 x 415 mm

Case Size (L x W x H): 443 x 280 x 440 mm

Carton Case Size (L x W x H): 505 x 345 x 518 mm

Max. VGA Card: 410 mm

Max. CPU Cooler: 157 mm

Cable Management: 55 mm

Weight: 7.2 kg / 8.4 kg
